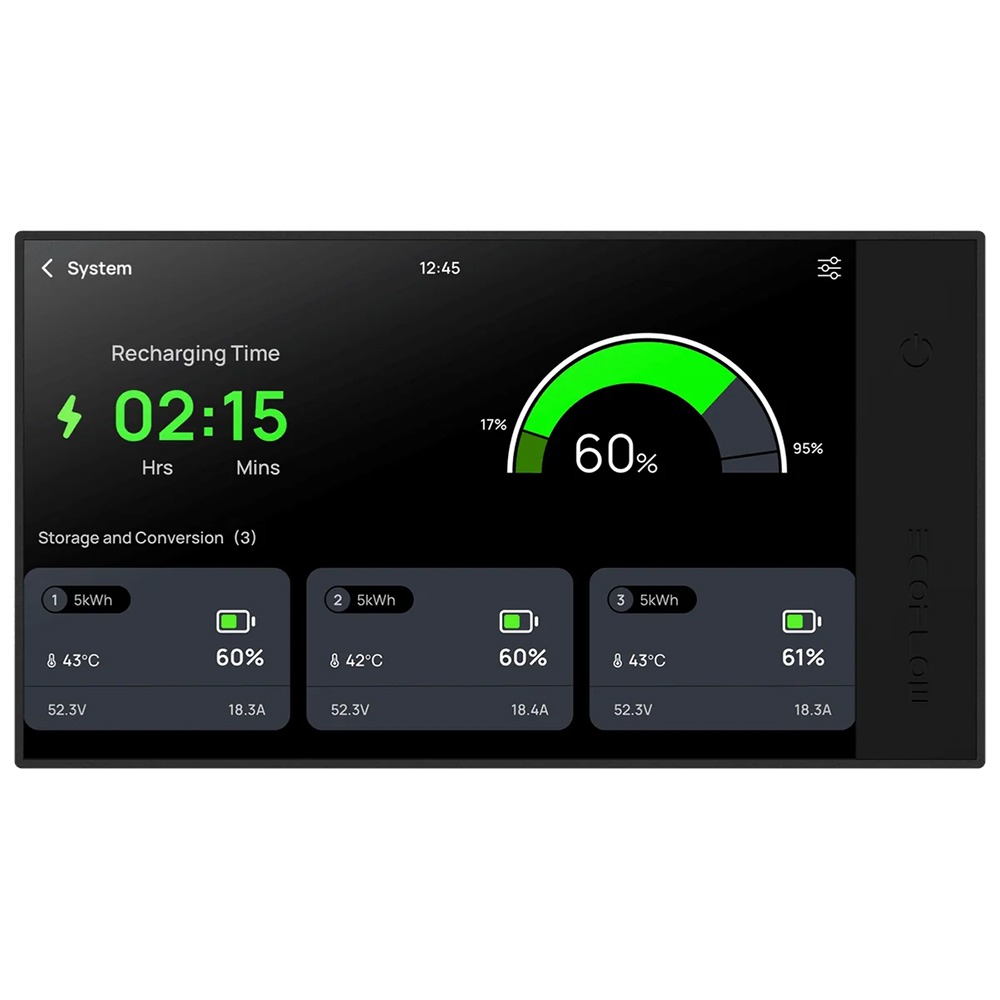

The EcoFlow Power Kits Console is a wall-mounted 7-inch IPS touchscreen dedicated to live monitoring and configuration of a Power Kit 5 kVA energy system. It surfaces real-time voltages, currents, state of charge and consumption figures on a single screen, so the vehicle occupant does not need a phone or the EcoFlow app to check on the system. At just 450 g and 22 mm deep it can be surface-mounted on a habitation-side panel or a piece of furniture without dominating the interior.

• 7-inch IPS touchscreen at 11.3 × 20.5 × 2.2 cm and 450 g, with a bright display readable in a caravan or motorhome interior.
• Real-time state of charge, AC and DC power flow and load consumption at a glance — no phone required to spot a heavy consumer.
• Adjust charge and discharge levels, DC output voltage and AC input frequency and current directly from the console for immediate response.
• Powered and networked over an RJ45 CAN bus link from the Power Hub — a single cable handles both data and 12 V DC supply.
• Wide operating temperature range from −25 °C to 60 °C, tolerant of both winter and summer camper interiors and unheated garages.
• Ships with a wall bracket for a clean surface-mounted appearance in the habitation area, positioned to be reachable from the seating or bedroom area.
• Complements the EcoFlow app rather than replacing it — one operator can adjust the system on the console while another watches state of charge in the app.

Key specs

• Screen: 7-inch IPS touchscreen
• Network: RJ45 CAN
• Power supply: 12 V DC over RJ45
• Weight: 450 g
• Dimensions: 11.3 × 20.5 × 2.2 cm
• Operating temperature: −25 °C to 60 °C

A useful upgrade in any Power Kit 5 kVA setup where a visible dashboard is preferable to relying on the app alone, particularly in family motorhomes with more than one operator or in fixed off-grid installations where a phone may not always be within reach of the electrical bay. The wall-mounted format keeps the controls at eye level for everyday use.
