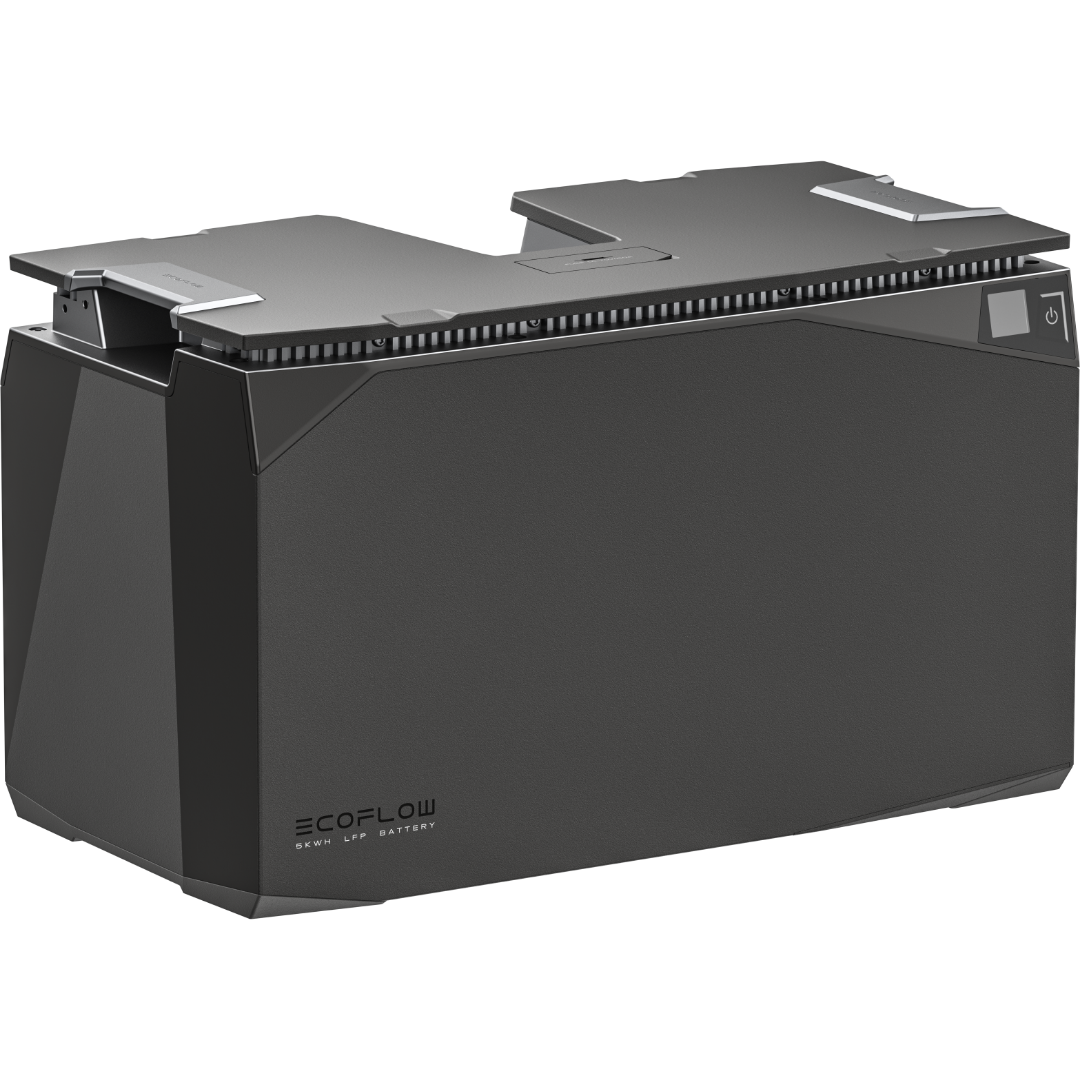

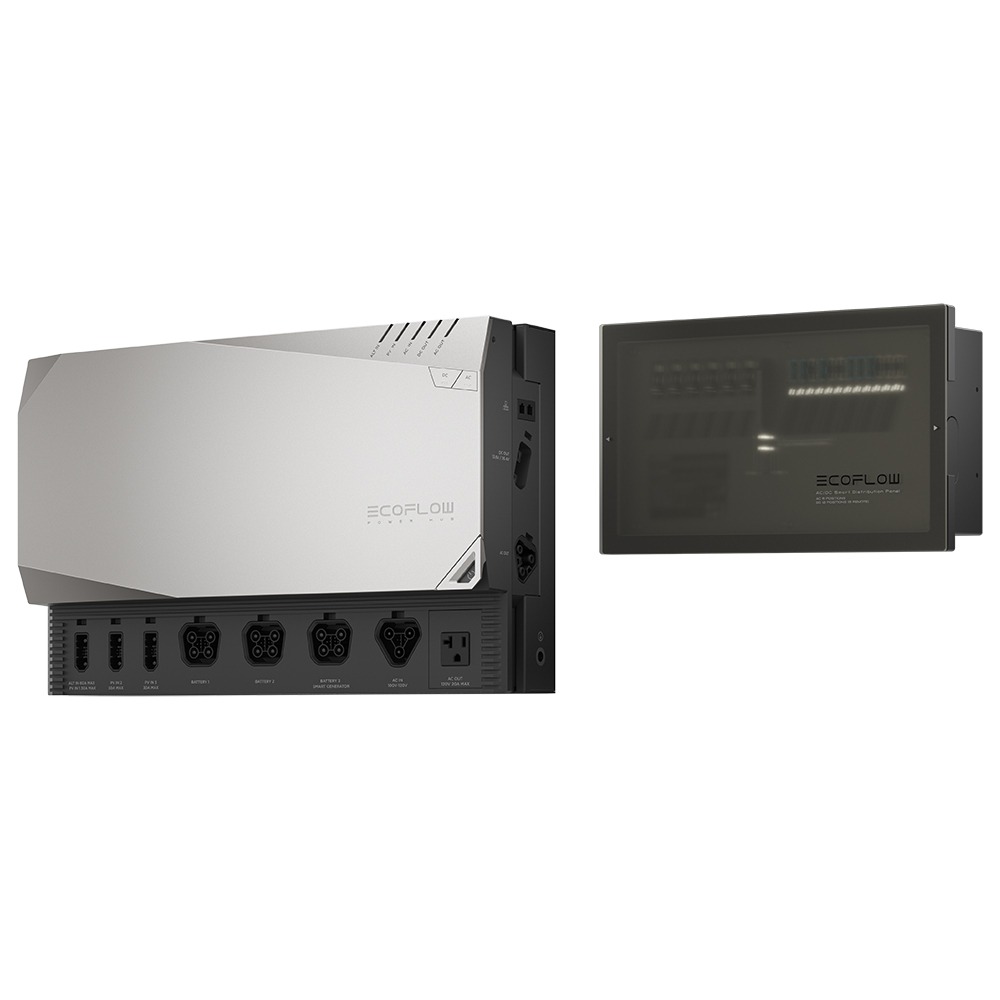

The EcoFlow 5kWh Prepared Power Kit combines the Prepared bundle — Power Hub and AC/DC Smart Distribution Panel — with a single 5.120 Wh LFP battery. It suits installers who prefer to monitor the system through the EcoFlow app or an existing on-board display, and who want a full day of usable energy at 48 V without the added footprint of the Console. The battery uses LiFePO₄ chemistry certified for 3.500 cycles to 80 % capacity, which corresponds to about ten years of daily deep discharge.

• 5.120 Wh / 100 Ah usable storage — covers a normal day in a mid-size camper or a well-insulated tiny house.
• Power Hub X-Boost inverter delivers up to 5.000 W continuous AC, enough for induction, coffee machine and workshop tools.
• Three MPPT solar inputs (15-60 V, 30 A each, up to 1.600 W per string) harvest energy from mixed roof orientations.
• Alternator input at 13-60 V, 60 A / 1.000 W max keeps the pack charged on long driving days without draining the vehicle battery.
• AC/DC Distribution Panel with 6 × AC outlets and 12 DC circuits (6 adjustable + 6 fixed, 20 A) keeps installation cabling compact.
• Sub-second EPS switchover from grid to battery keeps critical devices such as fridges, routers or medical equipment online through short outages.

Key specs

• Battery capacity: 5.120 Wh / 100 Ah
• Chemistry: LiFePO₄
• Life cycles: 3.500 cycles to 80 % capacity
• AC output: up to 5.000 W (X-Boost)
• Solar inputs: 3 × 15-60 V, 30 A (up to 1.600 W each)
• Alternator input: 13-60 V, 60 A (up to 1.000 W)
• AC input: 220-240 V, 50 Hz, up to 30 A (3.000 W)
• System voltage: 48 V DC
• Warranty: 5 years

Ideal for a self-built camper or tiny house where the installer already plans a custom display or uses the EcoFlow app as the main interface. 2 kWh and 5 kWh Power Kit batteries cannot be mixed.
