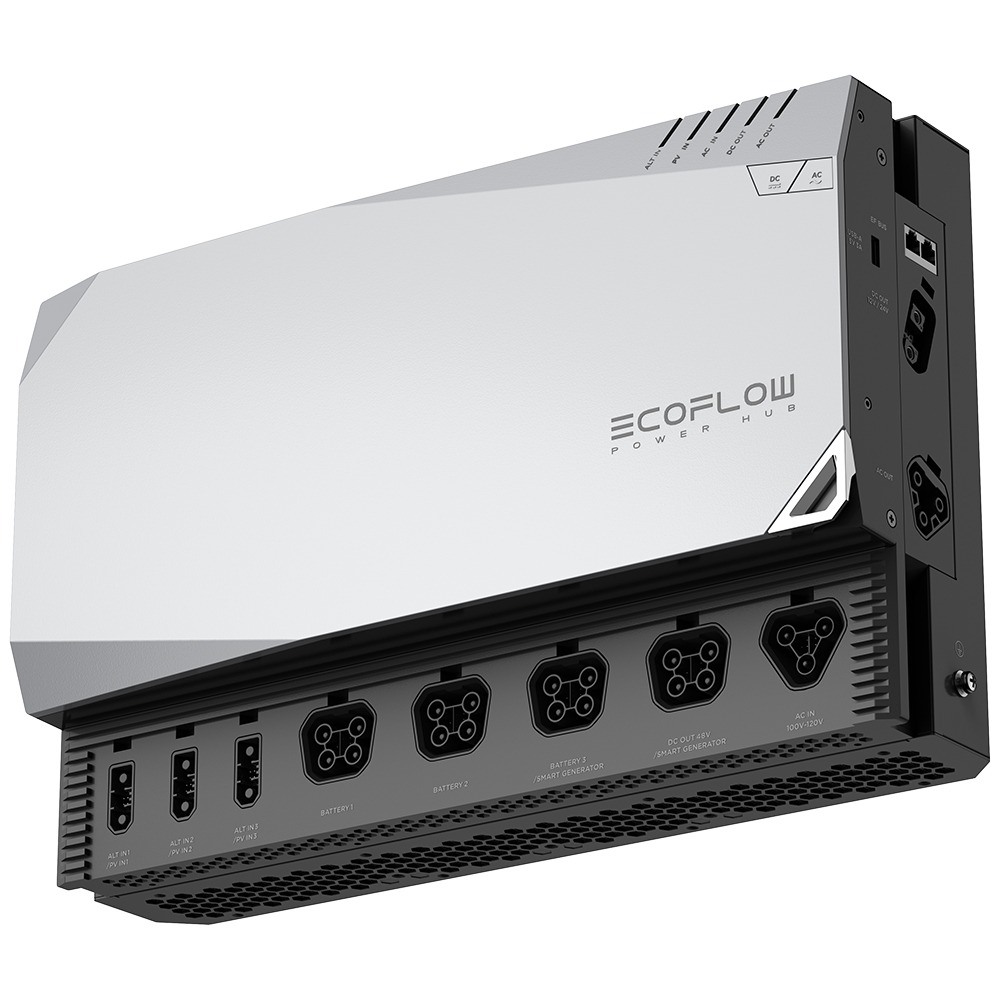

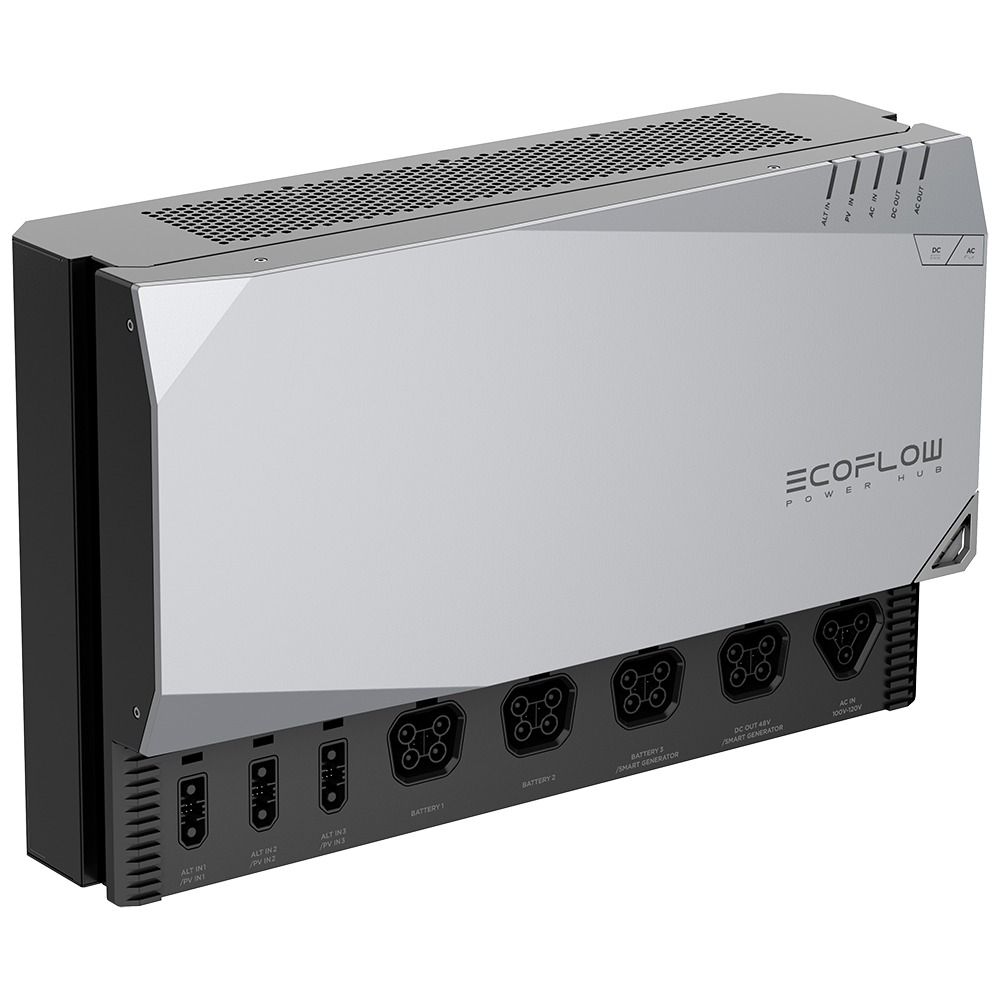

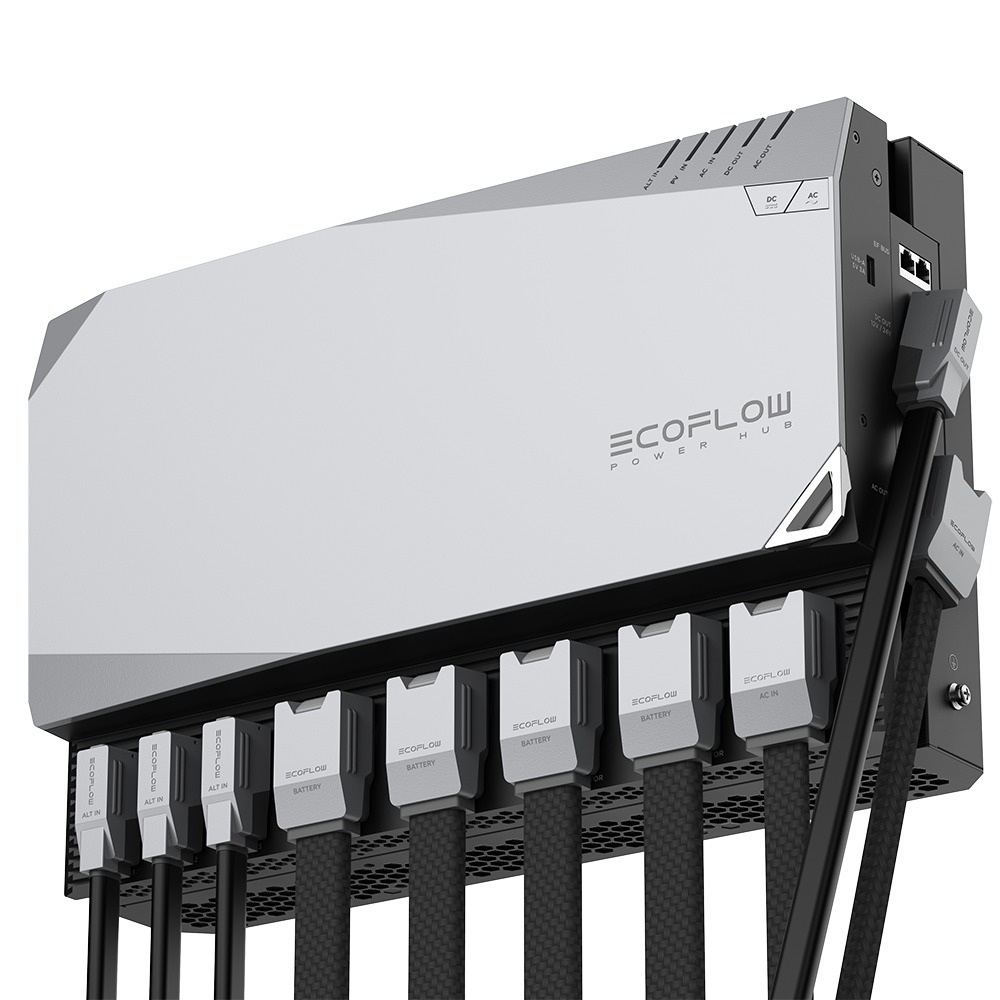

The EcoFlow Power Hub 5kVA is the central distribution unit at the heart of the EcoFlow Power Kits 5kVA 48V platform. It merges an inverter-charger, three MPPT solar controllers, an alternator input and a DC step-down converter inside a single 15,5 kg housing that measures 48 × 30 × 14 cm. Paired with EcoFlow LFP batteries and up to 7,2 kW of solar, it becomes the electrical backbone of a tiny house, camper, van conversion or off-grid cabin. Whether you run it fully off-grid or in parallel with the mains, the Hub decides in real time where power should come from and where it should go.

• Continuous 4.000 W AC output with a 10 kVA peak, so demanding loads such as induction cooktops, coffee machines or power tools can start without stalling.
• Three independent MPPT inputs (13-60 V; 100 A + 30 A + 30 A) let you combine roof arrays with different orientations for up to 7,2 kW of solar input.
• X-Stream charging pushes up to 3.000 W into the battery bank while X-Fusion Power Assist adds up to 5.000 VA of grid support during heavy draws.
• Sub-second EPS switchover keeps sensitive electronics like fridges, medical devices or a NAS running when the grid drops.
• Smart alternator input charges the bank at up to 4.000 W while driving and protects the vehicle starter battery from being drained.
• Scales from a single 2 kWh unit to 45 kWh of storage as usage grows, without replacing the hub itself.

Key specs

• Continuous AC output: 4.000 W (10 kVA peak)
• Grid bypass: 220-240 V, 50 A max
• Solar / alternator inputs: 3 × MPPT, up to 7,2 kW total
• DC output: 13,6 V 100 A or 26,4 V 60 A
• Weight: 15,5 kg
• Dimensions: 48 × 30 × 14 cm
• Operating temperature: -25 °C to 60 °C
• Protection: IP20 (indoor use)
• Warranty: 5 years

It suits campers that need heavy loads on the road as well as permanent tiny-house installations where solar, generator and grid all have to coexist.
